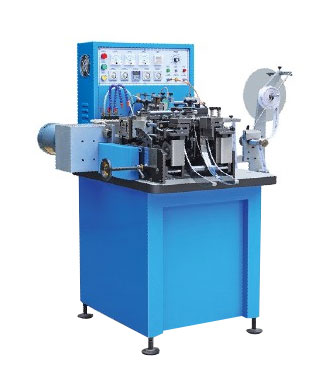

JZ-2817 Cutting & Folding Machine
JZ-2817 model is easy to operate and Has superb performance, It is designed Especially for with soft labels and its Smooth operate.
Equipped with a photo electronic fault Eliminator that can reduce defective Cutting and folding to the lowest Possible.
Main Technical Parameter:
| Cutting & Folding Materials | Ribbon tape,silk tape,adhesive tape |
| Cutting & Folding Variety | 10mm~70mm End folding,short and long folding,centre folding,envelop folding |
| End Fold | shortest 25mm, Longest 80mm, Narrowest10mm, widest 70mm |
| Centre Fold | shortest 25mm, Longest80mm, Narrowest 10mm, widest 70mm |
| Envelop Fold | shortest 25mm, Longest 80mm, Narrowest 10mm , widest 70mm |
| Fold Label Speed | 130pcs/min |
| Cutting label speed | piece cut 170pcs/min |
| Power | AC:200v~240V 15A/50-60HZ |
| Output | 3KW |
| Weight | 300KG |
| Dimension(L*W*H) | 1200*1380*1560mm |
